ABOUT GARNET
Garnet is a completely natural abrasive that does not contain toxic substances and metals, free silica, chloride and carbonate. In short, it has the following advantages over other abrasives:
• Economic efficiency
The use of garnet in various applications results in a significant reduction in blasting costs. This problem can be calculated and offered for different projects depending on the type of consumption.
• Low consumption
The unique shape of garnet grains allows the grains to hit the surface more effectively, which reduces abrasive consumption. (the other half of the abrasives)
• High efficiency
The blasting speed using garnet is high (two to three times higher than other abrasives) and makes the operation more efficient. The shape, density and hardness of the grains allow the garnet grains to hit the surface with high speed and high inertia and flake off at high speed.
• High quality surface blasting
Garnet grains penetrate the voids on the surface, reaching the metal body and removing all existing contaminants. The blasted surface is free of sharp, peak-like particles and can easily reach the SA3 standard level for metals. In addition, a surface roughness of between 50 and 90 microns is achieved depending on the type of granulation used.
• Low dust generation during the blasting process
Garnet sandblasting has the lowest dust generation. In addition to the cleanliness of the grains, their high resistance to breakage and fine particle production, their hardness and high particle density allow blasting with minimal contamination. This feature does not reduce the visibility of the operators, ensures the safety of the workers and ensures continuity of blasting operations during working hours.
• Recyclable feature
Garnet is suitable for reuse. Depending on the type of use, this abrasive can be recycled between 4 and 8 times (and in some cases up to 10 times) without reducing its peeling properties.
• Protects health and safety
Garnet is non-toxic and does not contain heavy metals and radioactive pollutants that can be filtered. However, Silica causes Silicosis.
• Economic efficiency
The use of garnet in various applications results in a significant reduction in blasting costs. This problem can be calculated and offered for different projects depending on the type of consumption.
• Low consumption
The unique shape of garnet grains allows the grains to hit the surface more effectively, which reduces abrasive consumption. (the other half of the abrasives)
• High efficiency
The blasting speed using garnet is high (two to three times higher than other abrasives) and makes the operation more efficient. The shape, density and hardness of the grains allow the garnet grains to hit the surface with high speed and high inertia and flake off at high speed.
• High quality surface blasting
Garnet grains penetrate the voids on the surface, reaching the metal body and removing all existing contaminants. The blasted surface is free of sharp, peak-like particles and can easily reach the SA3 standard level for metals. In addition, a surface roughness of between 50 and 90 microns is achieved depending on the type of granulation used.
• Low dust generation during the blasting process
Garnet sandblasting has the lowest dust generation. In addition to the cleanliness of the grains, their high resistance to breakage and fine particle production, their hardness and high particle density allow blasting with minimal contamination. This feature does not reduce the visibility of the operators, ensures the safety of the workers and ensures continuity of blasting operations during working hours.
• Recyclable feature
Garnet is suitable for reuse. Depending on the type of use, this abrasive can be recycled between 4 and 8 times (and in some cases up to 10 times) without reducing its peeling properties.
• Protects health and safety
Garnet is non-toxic and does not contain heavy metals and radioactive pollutants that can be filtered. However, Silica causes Silicosis.
HTP company supplies garnet sand for use in sandblasting and water jetting operations, in the highest quality and in accordance with international standards, from one of the largest mines in the world.
Garnet has different granulations and is used to create different roughnesses on different surfaces for various purposes.
High density, durability and hardness reduce the amount of consumption of this abrasive and provide high speed in the sandblasting process in a way that is suitable for environmental conditions and does not cause environmental pollution.
Depending on the type of consumption, Garnet can be recycled 4 to 8 times (in some cases up to 10 times), This abrasive has these characteristics due to its high strength and low brittleness.
This abrasive has the highest quality in terms of grain cleanliness (dust and dirt) and is manufactured according to the standard chloride and free silica level ISO11126-10:2000E standard.
Garnet does not contain ferrous metals and does not produce sparks and is used for sandblasting all surfaces including stainless steel, antimagnetic steel, and various alloys, aluminum, turbine blades, fiberglass, teflon surfaces and other special surfaces.
Abrasives are hard materials that have various uses such as grinding, polishing, cutting, drilling and sanding. The best type of abrasive is called garnet. Garnet is an abrasive mineral sandstone composed of Almandite or Fe3Al2(SiO4)3. These substances are one of the hardest and most durable types of sand known. The most important feature of this abrasive is that it does not contain toxic substances such as heavy metals (especially free silica), and has the necessary standards for human and environmental health.
USES OF GARNET
Garnet is used to clean and prepare a variety of surfaces in the following industries:
· Shipbuilding factories
· Oil, gas and petrochemical industries
· Refineries
· Power plants
· Water and sewage treatment plants
· Storage tanks
· Oil drilling rigs
· Liquid transfer pipes
· Marine platforms and structures
· Connection stations
· Straps
· Bridges
· Structures
· Anti-wear concretes
· Train wagons
· Containers
· Trucks
· ...
ADVANTAGES OF GARNET OVER OTHER ABRASIVES
• GARNET H30
Garnet H30 has a high performance (in terms of speed and cost). This product with its fine granulation feature is recommended for sandblasting metal surfaces with little rust or requiring a thin paint coating. The sandblasting speed at this size is high, in return creating a soft surface roughness.
High sandblasting speed and surface cleanliness (up to twice that of normal abrasives):
This advantage is due to the large number of active garnet grains hitting the surface (approximately 28 million grains per kilogram) and with this garnet the sandblasting speed will be up to approximately 20-25 square meters per hour.
Low Garnet consumption: approximately 10-7 kg per square meter
This garnet greatly reduces abrasive consumption due to the presence of hard and durable (MOHS7/5-8) grains that can be recycled 4 to 8 times under normal conditions. If this garnet is recycled, garnet consumption will be reduced by approximately 70%.
SA3 sandblasting quality: SA3 standard can be easily achieved with this garnet.
The shape and size of the grains of this garnet create a surface with a surface roughness of 55-45 microns (with 7 bar air pressure).
• GARNET H20
Garnet H20 is a high-performance, widely used abrasive. With its medium-sized granulation, this product is recommended for blasting most surfaces that are moderately rusty or require a medium color coating. The surface created using this product will be moderately rough.
High blasting speed and surface cleaning (up to twice that of common abrasives):
This advantage is due to the large number of active garnet grains (approximately 20 million grains per kilogram) hitting the surface, and with this garnet the blasting speed will be up to approximately 15-25 square meters per hour.
Low garnet consumption: Approximately 10-8 kg per square meter
This garnet greatly reduces abrasive consumption due to the presence of hard and durable (MOHS7/5-8) grains that can be recycled 4 to 6 times under normal conditions. If this garnet is recycled, garnet consumption will be reduced by approximately 65%.
SA3 blasting quality: SA3 standard can be easily achieved with this garnet. The shape and size of the grains of this garnet create a surface with a surface roughness of 50-70 microns (with 7 bar air pressure).
• GARNET H16
Garnet H16 product is one of the most effective abrasives for sandblasting different surfaces with its high efficiency. This product is recommended for sandblasting most surfaces that require heavy rust or thick color coating with its large granulation. This product can produce high roughness surface profiles.
High sandblasting speed and surface cleanliness (up to 2 times that of common abrasives):
This advantage is due to the large number of active garnet grains (about 13 million grains per kilogram) hitting the surface, and with this garnet, the sandblasting speed will be up to about 20-25 square meters per hour.
Low garnet consumption: about 10-12 kg per square meter
This garnet greatly reduces abrasive consumption due to the presence of hard and durable (MOHS7/5-8) grains that can be recycled 4 to 6 times under normal conditions. If this garnet is recycled, garnet consumption will be reduced by about 60%.
SA3 sandblasting quality: SA3 standard can be easily achieved with this garnet. The shape and size of the grains of this garnet create a uniform sandblasted surface with a surface roughness of 50-85 microns (with 7 bar air pressure).
Garnet H30 has a high performance (in terms of speed and cost). This product with its fine granulation feature is recommended for sandblasting metal surfaces with little rust or requiring a thin paint coating. The sandblasting speed at this size is high, in return creating a soft surface roughness.
High sandblasting speed and surface cleanliness (up to twice that of normal abrasives):
This advantage is due to the large number of active garnet grains hitting the surface (approximately 28 million grains per kilogram) and with this garnet the sandblasting speed will be up to approximately 20-25 square meters per hour.
Low Garnet consumption: approximately 10-7 kg per square meter
This garnet greatly reduces abrasive consumption due to the presence of hard and durable (MOHS7/5-8) grains that can be recycled 4 to 8 times under normal conditions. If this garnet is recycled, garnet consumption will be reduced by approximately 70%.
SA3 sandblasting quality: SA3 standard can be easily achieved with this garnet.
The shape and size of the grains of this garnet create a surface with a surface roughness of 55-45 microns (with 7 bar air pressure).
• GARNET H20
Garnet H20 is a high-performance, widely used abrasive. With its medium-sized granulation, this product is recommended for blasting most surfaces that are moderately rusty or require a medium color coating. The surface created using this product will be moderately rough.
High blasting speed and surface cleaning (up to twice that of common abrasives):
This advantage is due to the large number of active garnet grains (approximately 20 million grains per kilogram) hitting the surface, and with this garnet the blasting speed will be up to approximately 15-25 square meters per hour.
Low garnet consumption: Approximately 10-8 kg per square meter
This garnet greatly reduces abrasive consumption due to the presence of hard and durable (MOHS7/5-8) grains that can be recycled 4 to 6 times under normal conditions. If this garnet is recycled, garnet consumption will be reduced by approximately 65%.
SA3 blasting quality: SA3 standard can be easily achieved with this garnet. The shape and size of the grains of this garnet create a surface with a surface roughness of 50-70 microns (with 7 bar air pressure).
• GARNET H16
Garnet H16 product is one of the most effective abrasives for sandblasting different surfaces with its high efficiency. This product is recommended for sandblasting most surfaces that require heavy rust or thick color coating with its large granulation. This product can produce high roughness surface profiles.
High sandblasting speed and surface cleanliness (up to 2 times that of common abrasives):
This advantage is due to the large number of active garnet grains (about 13 million grains per kilogram) hitting the surface, and with this garnet, the sandblasting speed will be up to about 20-25 square meters per hour.
Low garnet consumption: about 10-12 kg per square meter
This garnet greatly reduces abrasive consumption due to the presence of hard and durable (MOHS7/5-8) grains that can be recycled 4 to 6 times under normal conditions. If this garnet is recycled, garnet consumption will be reduced by about 60%.
SA3 sandblasting quality: SA3 standard can be easily achieved with this garnet. The shape and size of the grains of this garnet create a uniform sandblasted surface with a surface roughness of 50-85 microns (with 7 bar air pressure).

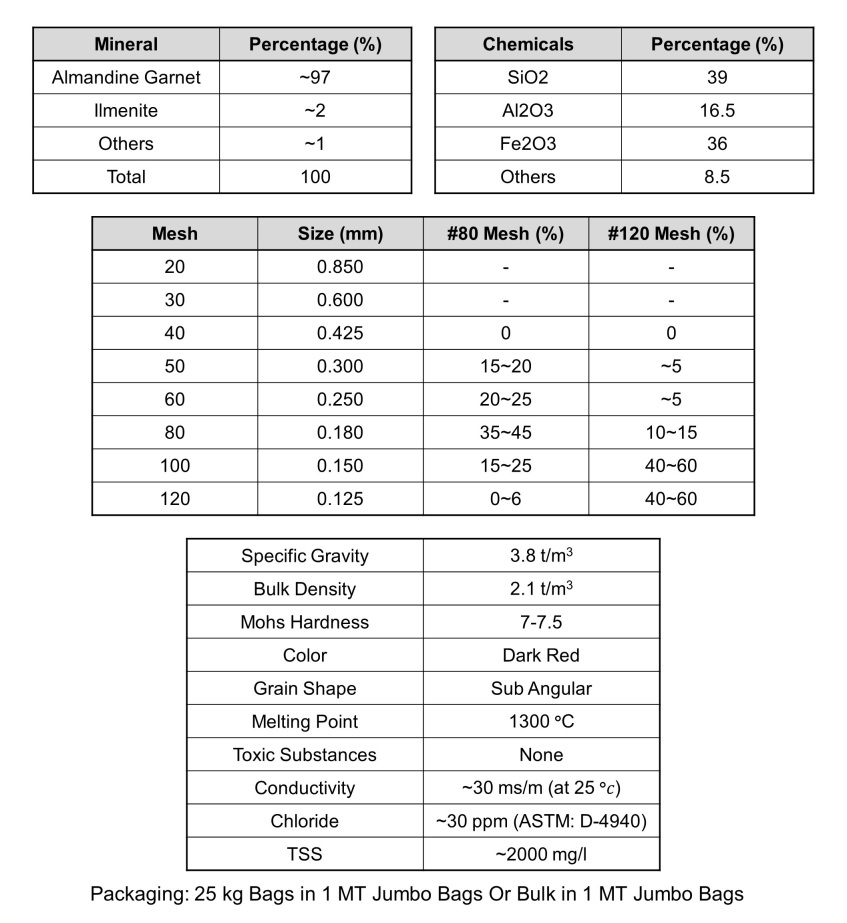

GARNET SAND SIZES
COMPOSITION / INFORMATION ABOUT INGREDIENTS
